Special ULD
※Contour and weight limitation would be changed depend on the loading position on aircraft

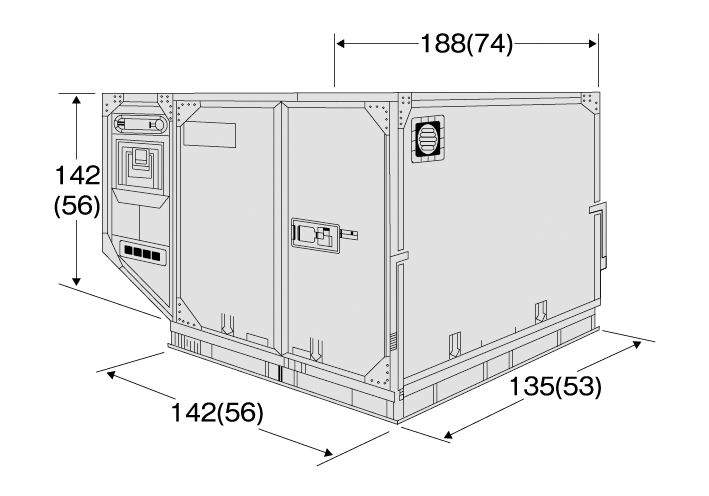

RKN (LD-3F)
Illustration(Internal Dimension)
Specification
- Inside Temp -20~+20℃
- Coolant DRY‐ICE
- FANTYPE
Int Volume: m3(cuft) | 3.5(123) | ||
---|---|---|---|
External Dimension/L×W×H: cm(inch) |
156×153×163 (61.5×60.4×64) | ||
Door Size:cm(inch) | 142×140 (56×55) | ||
Tare Wt:kg(Lbs) | 260~270 (573~595) | ||
Loadable Aircraft | B777 B787 B767 A380 | ||
Weight Lim Inc ULD Tare Wt: kg(Lbs) |
1,587 (3,500) |

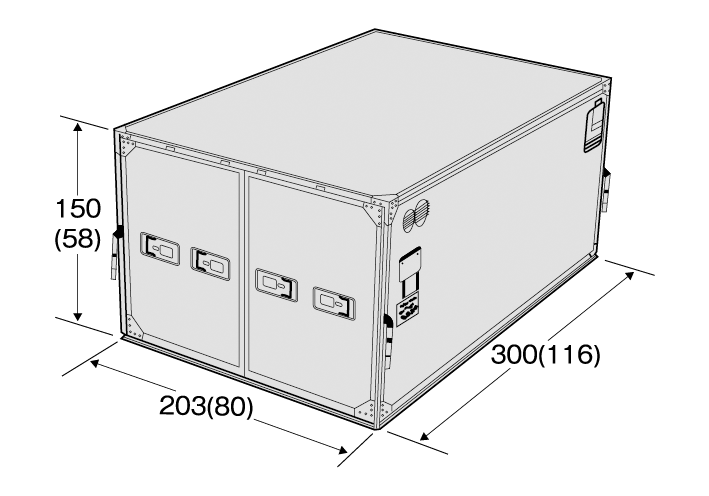

RAP (LD-9)
Illustration(Internal Dimension)
Specification
- Inside Temp -20~+20℃
- Coolant DRY‐ICE
- FANTYPE
Int Volume: m3(cuft) | 8.9(314) | ||
---|---|---|---|
External Dimension/L×W×H: cm(inch) |
318×224×163 (125×88×64) | ||
Door Size:cm(inch) | 278×145 (109×57) | ||
Tare Wt:kg(Lbs) | 450~460 (992~1,014) | ||
Loadable Aircraft | B777 B787 | B767ER F | A380 |
Weight Lim Inc ULD Tare Wt: kg(Lbs) |
4,676 (10,310) | 5,102 (11,250) | 4,626 (10,200) |

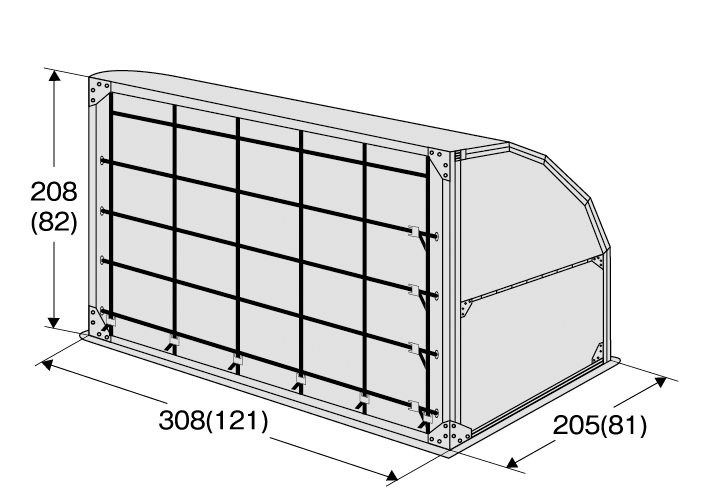

AAX
Illustration(Internal Dimension)
Specification
Int Volume: m3(cuft) | 13.7(484) | |
---|---|---|
External Dimension/L×W×H: cm(inch) |
318×224×243 (125×88×96) | |
Door Size:cm(inch) | 295×233 (116×92) | |
Tare Wt:kg(Lbs) | 309 (681) | |
Loadable Aircraft | B767F | B777F |
Weight Lim Inc ULD Tare Wt: kg(Lbs) |
MAIN: 4,857(10,710)~8,915(19,656) | MAIN: 4,082(9,000)~6,803(15,000) |

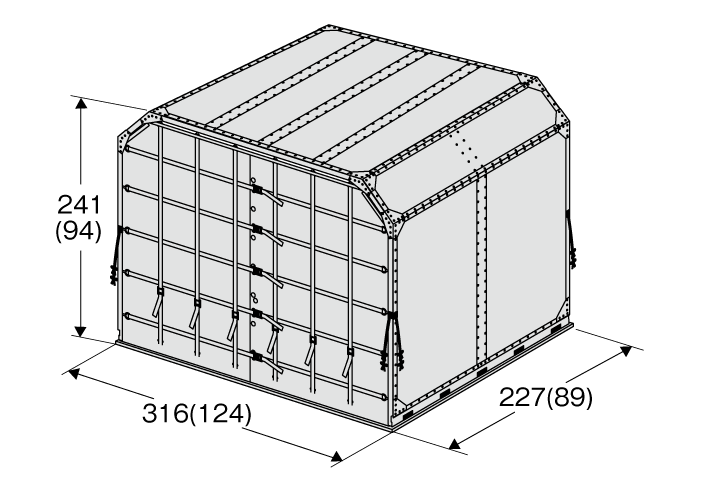

AMA
Illustration(Internal Dimension)
Specification
Int Volume: m3(cuft) | 17.1 (604) | ||
---|---|---|---|
External Dimension/L×W×H: cm(inch) |
318×244×242 (125×96×95.3) | ||
Door Size:cm(inch) | 293x228 (115x90) | ||
Tare Wt:kg(Lbs) | 287 (633) | ||
Loadable Aircraft | B767F | B777F | |
Weight Lim Inc ULD Tare Wt: kg(Lbs) |
MAIN: 3,394(7,483)~6,803(15,000) | MAIN: 4,082(9,000)~6,803(15,000) |

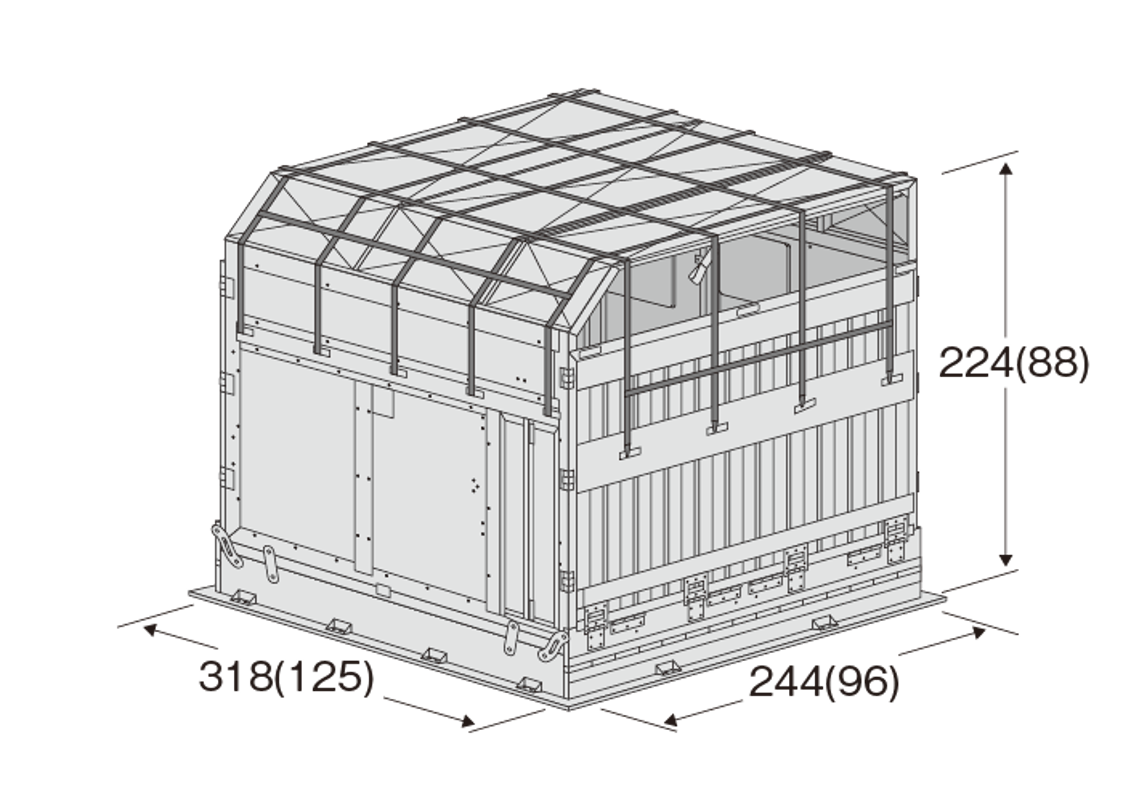

HMJ
Illustration(Internal Dimension)
Specification
Int Volume: m3(cuft) | 16.0 (565) |
---|---|
External Dimension/L×W×H: cm(inch) |
318x244x224 (125x96x88) |
Door Size:cm(inch) | 170x222 (67x87.5) |
Tare Wt:kg(Lbs) | 1150 (2535) |
Loadable Aircraft | B777F |
Weight Lim Inc ULD Tare Wt: kg(Lbs) |
MAIN: 6804 (15000) |
