Boeing 777-F

Aircraft Information

Cargo Door Dimension

[cm(inch)]

Compartment Door Dimension Width x Height
MAIN 373 x 305 (147 x 120)
FWD 259 x 170 (102 x 67)
AFT 259 x 170 (102 x 67)
BULK 84 x 112 (33 x 44)

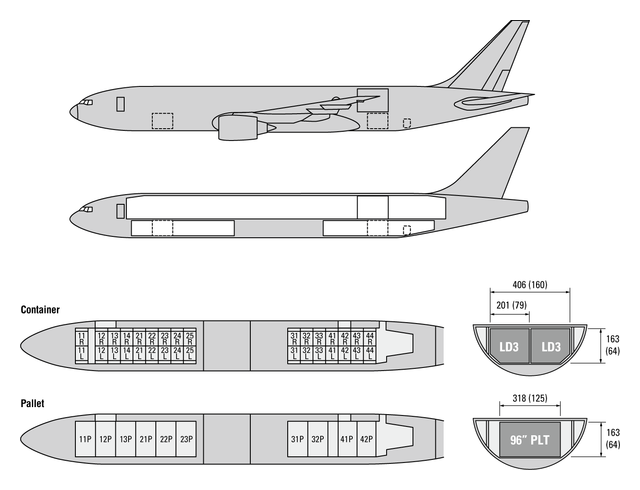

Maximum Number of ULD

Compartment ULD

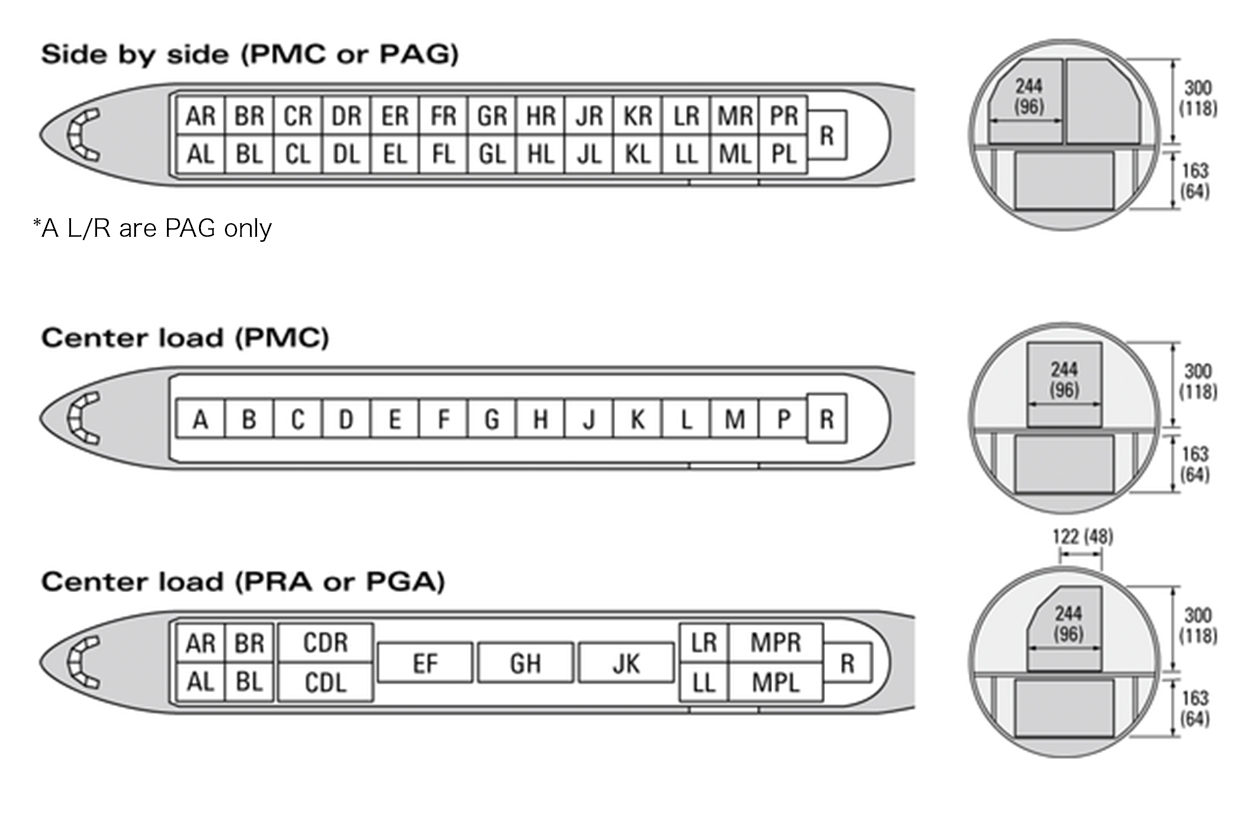

MAIN 27 Pallets (side by side ver)
FWD 18 Containers / 6 Pallets
AFT 14 Containers / 4 Pallets
TOTAL 32 Containers / 37 Pallets

Weight Limitation

Compartment Maximum Weight of Loading Floor Limitation
MAIN - 1,464kg/m² (300lbs/ft²)
FWD 30,617kg (67,500lbs) 976kg/m² (200lbs/ft²)
AFT 22,226kg (49,000lbs) 976kg/m² (200lbs/ft²)
BULK 4,082kg (9,000lbs) 732kg/m² (150lbs/ft²)

* It is not the maximum weight per aircraft, it is the maximum weight per cargo compartment.
* The maximum weight per aircraft varies depending on the flight route, weather, etc., so please contact our sales staff.

BULK

Bulk Dimension

[cm(inch)]

Package Size Table(BULK)

[cm(inch)]

  Width
12
(5)
25
(10)
38
(15)
50
(20)
63
(25)
84
(33.2)
Length
Height 101
(40)
429
(169)
429
(169)
391
(154)
360
(142)
337
(133)
312
(123)
91
(36)
429
(169)
429
(169)
408
(161)
373
(147)
347
(137)
325
(128)
81
(32)
429
(169)
429
(169)
429
(169)
391
(154)
363
(143)
337
(133)
71
(28)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
60
(24)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
50
(20)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
40
(16)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
30
(12)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
20
(8)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
10
(4)
429
(169)
429
(169)
429
(169)
411
(162)
381
(150)
347
(137)
