波音777-300
机体规格
货舱门尺寸
[cm(inch)]
| 货舱 | 尺寸 宽x高 | |
|---|---|---|
| 300 | 300ER | |
| 前舱(FWD) | 269 x 170 (106 x 67) | |
| 后舱(AFT) | 178 x 170 (70 x 67) | 269 x 170 (106 x 67) |
| 散仓(BULK) | 91 x 114 (36 x 45) | |
最大搭载集装器个数
| 货舱 | 集装器(ULD) | |
|---|---|---|
| 300 | 300ER | |
| 前舱(FWD) | 24 Containers / 8 Pallets | |
| 后舱(AFT) | 20 Containers | 20 Containers / 6 Pallets |
| 总数 | 44 Containers / 8 Pallets | 44 Containers / 14 Pallets |
重量限制
| 货舱 | 最大搭载重量 | 单位面积最大承重 |
|---|---|---|
| 前舱(FWD) | 30,617kg (67,500lbs) | 977kg/m² (200lbs/ft²) |
| 后舱(AFT) | 22,226kg (49,000lbs) | 977kg/m² (200lbs/ft²) |
| 散仓(BULK) | 4,082kg (9,000lbs) | 732kg/m² (150lbs/ft²) |
* 此处所示为每个货舱的最大搭载重量，不是每架飞机的最大搭载重量。
* 每架飞机的最大搭载重量因航线、天气等而异，具体详情请垂询我司销售人员。
BULK规格

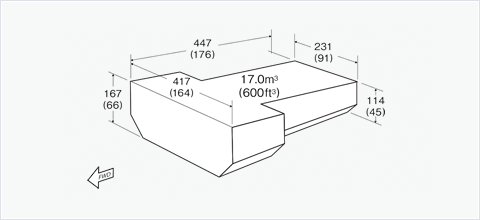

散仓 尺寸
[cm(inch)]
货物尺寸表（散仓(BULK)）
[cm(inch)]
| Width | |||||||
|---|---|---|---|---|---|---|---|
| 12 (5) |
25 (10) |
38 (15) |
50 (20) |
63 (25) |
84 (33.2) |
||
| Length | |||||||
| Height | 101 (40) |
429 (169) |
429 (169) |
391 (154) |
360 (142) |
337 (133) |
312 (123) |
| 91 (36) |
429 (169) |
429 (169) |
408 (161) |
373 (147) |
347 (137) |
325 (128) |
|
| 81 (32) |
429 (169) |
429 (169) |
429 (169) |
391 (154) |
363 (143) |
337 (133) |
|
| 71 (28) |
429 (169) |
429 (169) |
429 (169) |
411 (162) |
381 (150) |
347 (137) |
|
| 60 (24) |
429 (169) |
429 (169) |
429 (169) |
411 (162) |
381 (150) |
347 (137) |
|
| 50 (20) |
429 (169) |
429 (169) |
429 (169) |
411 (162) |
381 (150) |
347 (137) |
|
| 40 (16) |
429 (169) |
429 (169) |
429 (169) |
411 (162) |
381 (150) |
347 (137) |
|
| 30 (12) |
429 (169) |
429 (169) |
429 (169) |
411 (162) |
381 (150) |
347 (137) |
|
| 20 (8) |
429 (169) |
429 (169) |
429 (169) |
411 (162) |
381 (150) |
347 (137) |
|
| 10 (4) |
429 (169) |
429 (169) |
429 (169) |
411 (162) |
381 (150) |
347 (137) |
|
